Disclaimer: The colour of the battery may vary from the actual product, but with the same specifications.

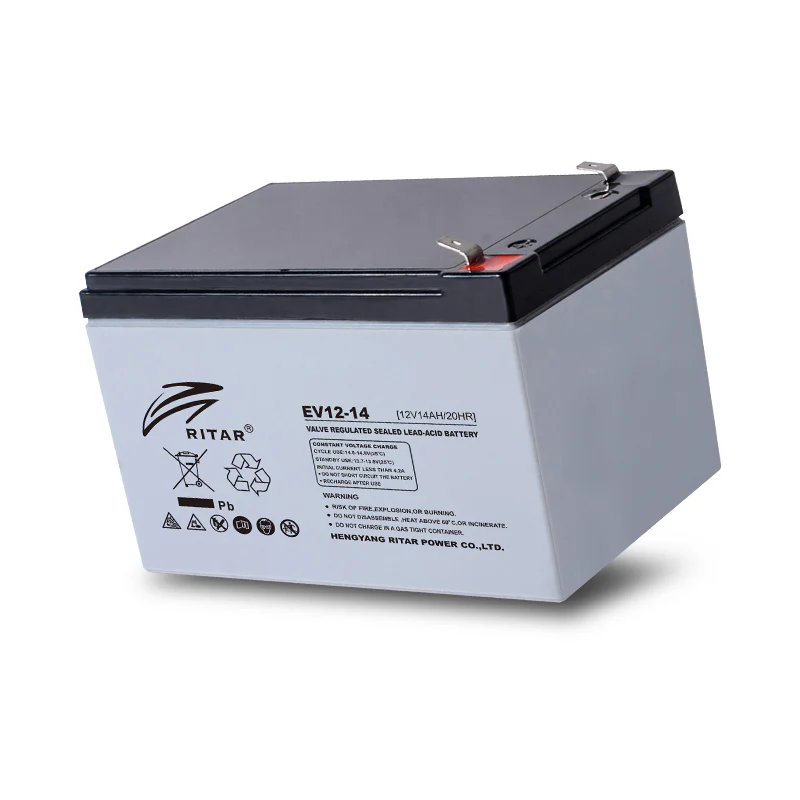

12V 14W Valve Regulated Lead Acid Battery

EV ( Electric Vehicle ) series is specially designed for frequent discharge deep cycle application. By using the specially designed active material, strong grids and thick plate construction, the EV series battery offers reliable performance in high load situations and could provide competitive cycle performance. Electric Vehicle and Golf cart, Floor Machines, Forklifts, Aerial lifts, Robotics, Marine, RV, Mobility and Medical Equipment, and most outdoor application.

Note:

• Old SKU - RT12140EV

Specifications:

• Cells Per Unit: 6
• Voltage Per Unit: 12
• Capacity:14Ah@20hr-rate to 1.75V per cell @25℃
• Weight: Approx. 13.0 mΩ
• Internal Resistance: Approx. 11 mΩ
• Terminal: F1/F2
• Max. Discharge Current: 210A (5 sec)
• Cold Cranking Ampere(CCA): 140A
• Maxi. Charging Current: 4.2A
• Reference Capacity:
• C3 10.9AH
• C5 12.0AH
• C10 13.2AH
• C20 14.0AH
• Float Charging Voltage
• 13.7 V~13.9 V @ 25℃
• Temperature Compensation: -3mV/℃/Cell
• Cycle Use Voltage
• 14.6 V~14.8 V @ 25℃
• Temperature Compensation: -4mV/℃/Cell
• Operating Temperature Range:
• Discharge: -20℃~60℃
• Charge: 0℃~50℃
• Storage: -20℃~60℃
• Normal Operating Temperature Range: 25℃±5℃
• Self Discharge: RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charge batteries before using.
• Container Material A.B.S. UL94-HB, UL94-V0 Optional

Dimensions:

• Length:181±2mm (7.13 inches)
• Width: 77±2mm (3.03 inches)
• Height: 167±2mm (6.57 inches)
• Total Height:167±2mm (6.57 inches)

Terminal	Value
M5	6~7 N*m
M6	8~10 N*m
M8	10~12 N*m

Constant Current Discharge Characteristics : A (25℃)

Constant Power Discharge Characteristics : WPC (25℃)
